waffle-ish

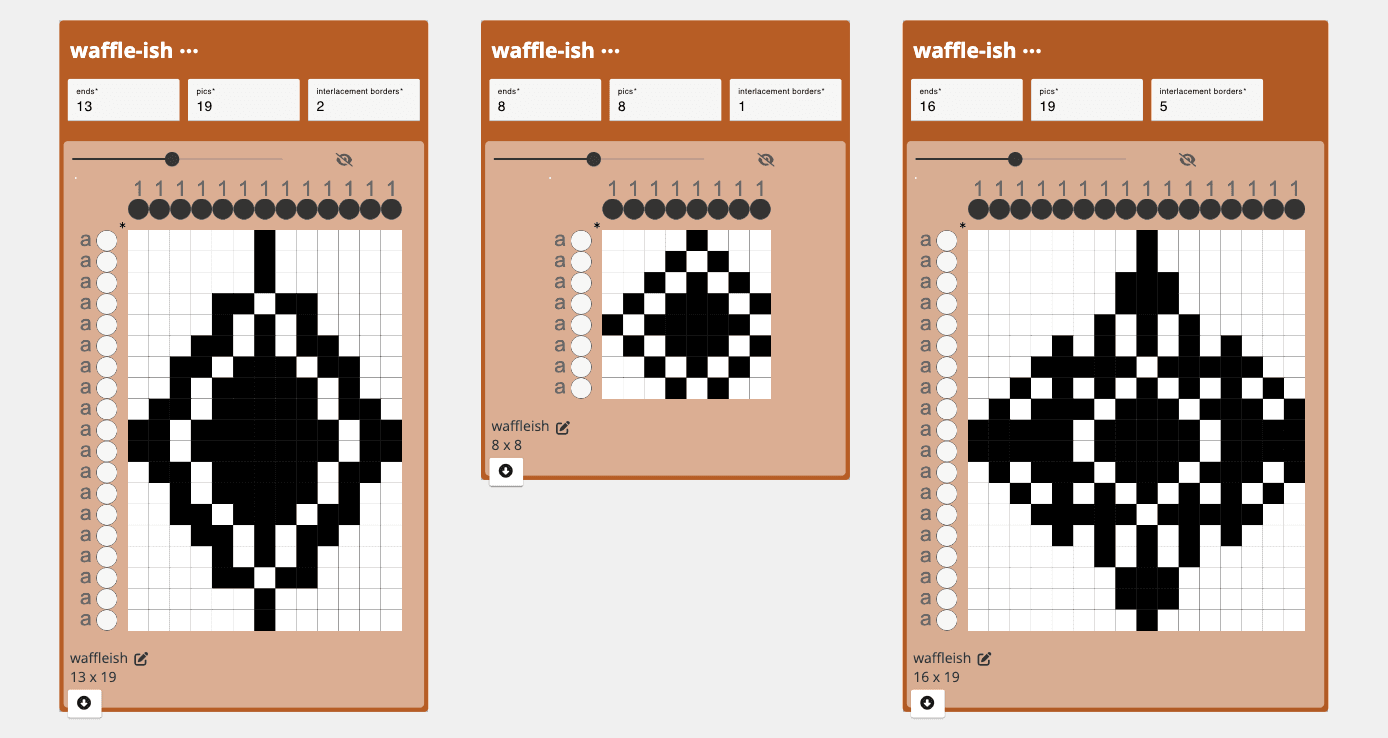

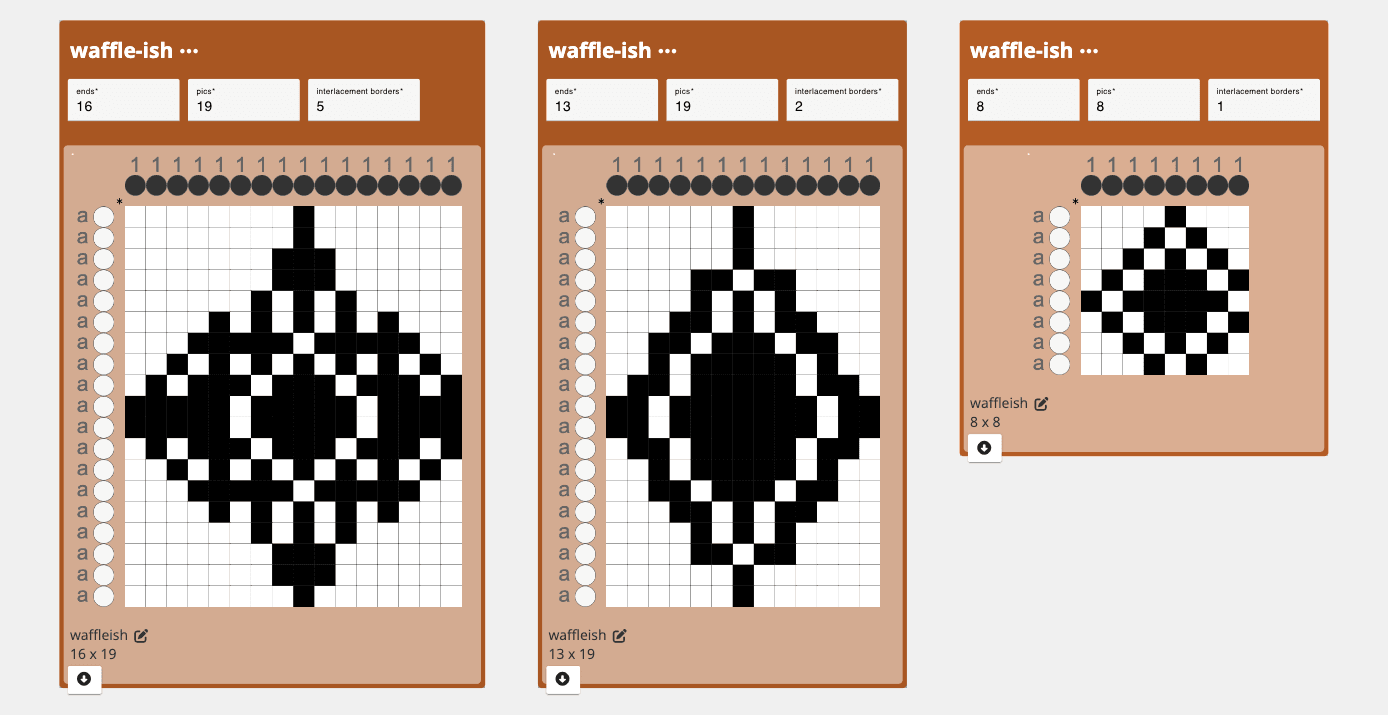

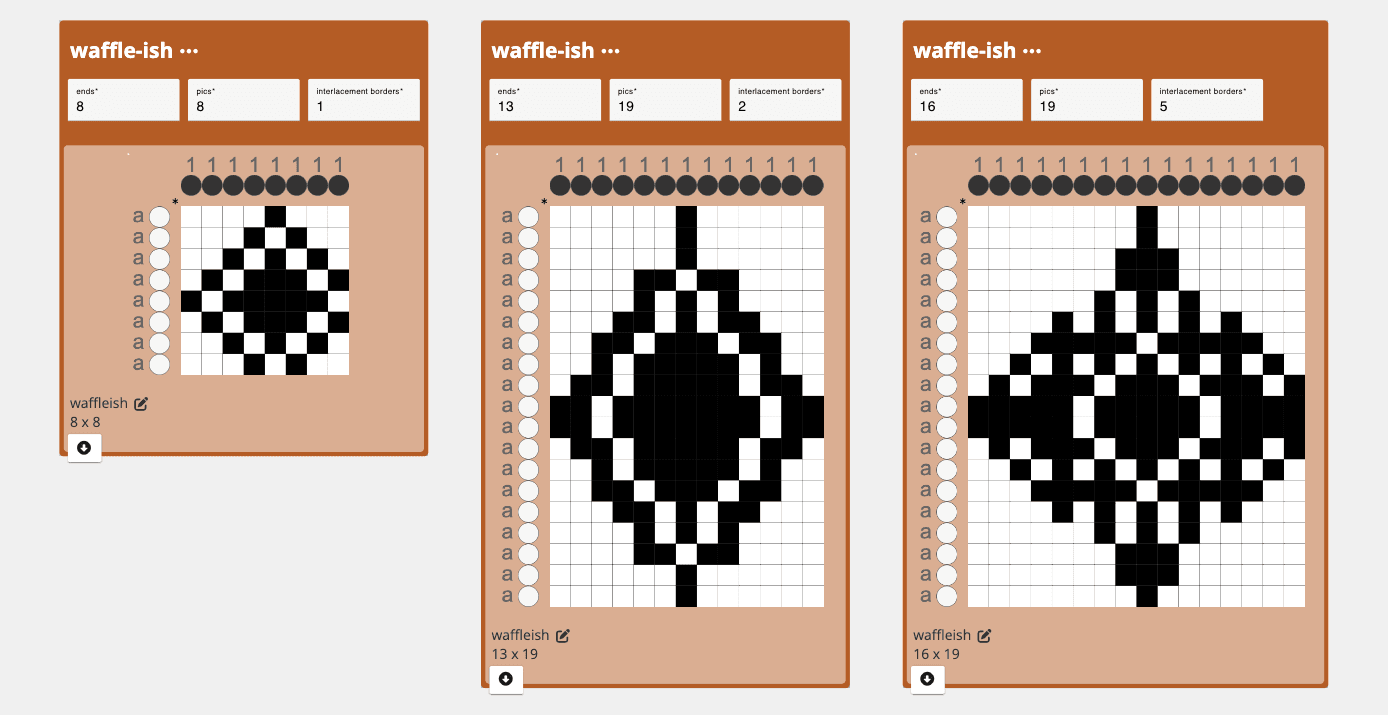

Waffle weave is a twill-based structure in which warp and weft floats of increasing and then decreasing lengths are bound by a border of tabby interlacements to create a grid of cells. Waffle-ish was a first attempt at making waffles that failed, but in the process, made some interesting results. Use waffle if you would like the correct version. This attempts to fit a diamond shape within the ends/pics specified and to knock out values within the central diamond to create binding rows.

Parameters​

  • ends: the number of ends to use in this structure
  • pics: this the number of pics to use in this structure
  • interlacement border: the number of tabby "outlines" along the central diamond

Application​

Generates unusual symmetric structures and perhaps interesting motifs to play with.

Developer​

adacad id: waffleish

Developer​

src/operations/waffleish/waffleish.ts
