crop

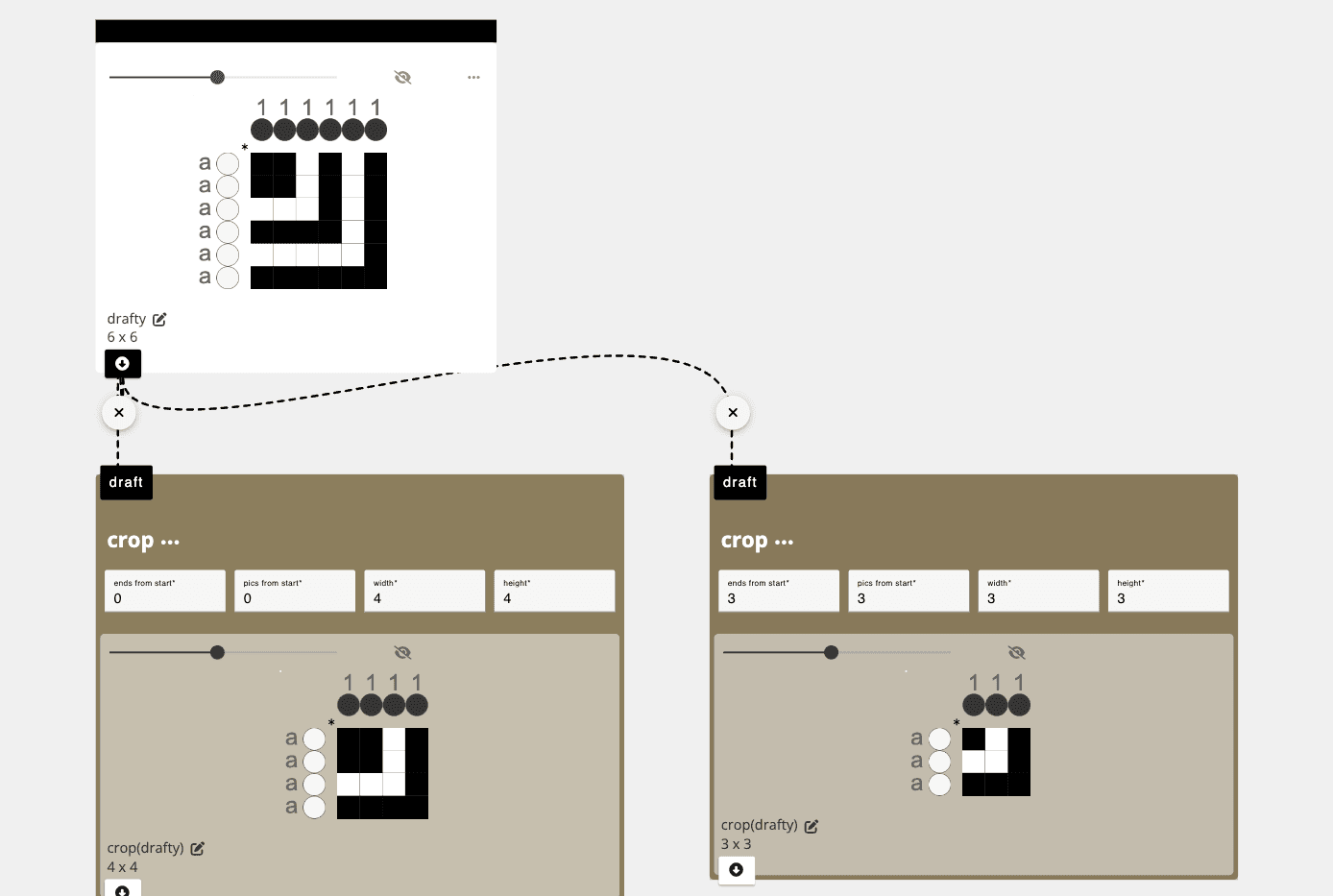

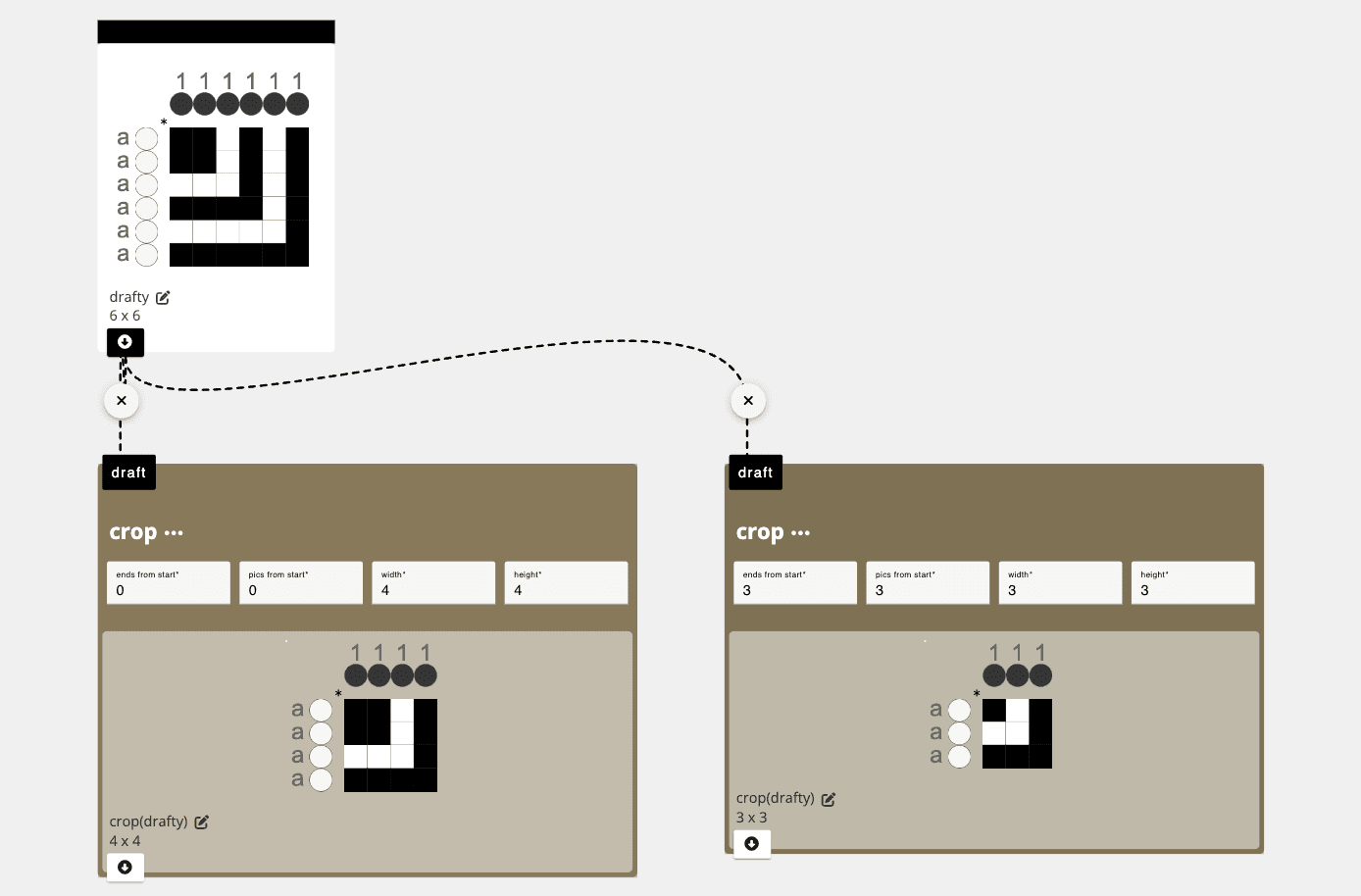

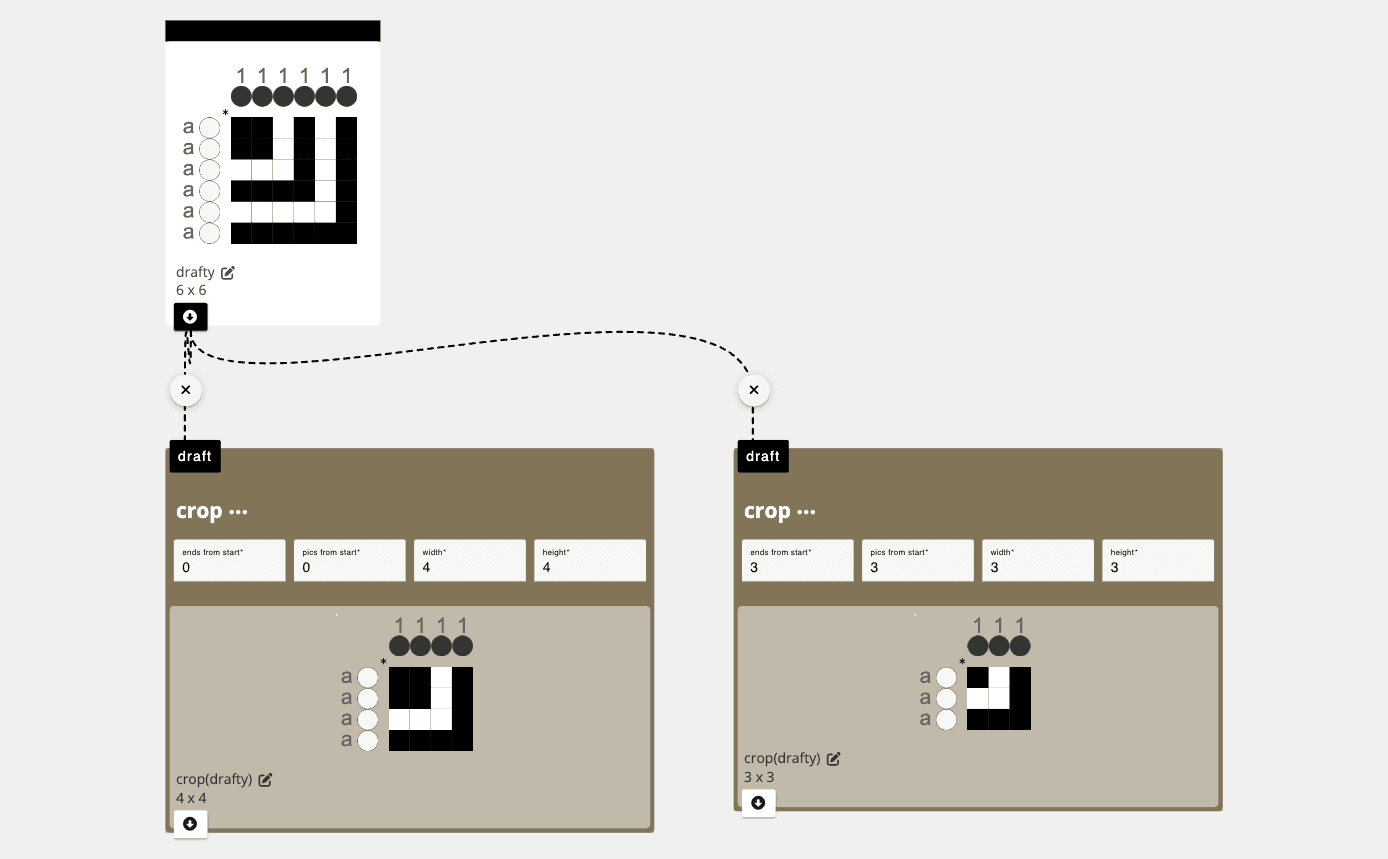

Crops the structure or pattern to a region of the input draft. The crop size and placement are defined by the parameters. This operation follows a model similar to graphics editing software where one specifies the x,y coordinates of the top left of the crop and then the width and height to "cut out".

Parameters​

  • ends from start: specifies the starting position of the crop in ends.
  • pics from start: specifies the starting position of the crop in pics.
  • width: specifies how many warp ends to keep
  • height: : specifies how many weft picks to keep

Application​

To pick a section out of a draft that you might want to modify

Additional Information​

You can also use trim to do the same thing using different parameters.

Developer​

adacad id: crop

Developer​

src/operations/crop/crop.ts
