add margins

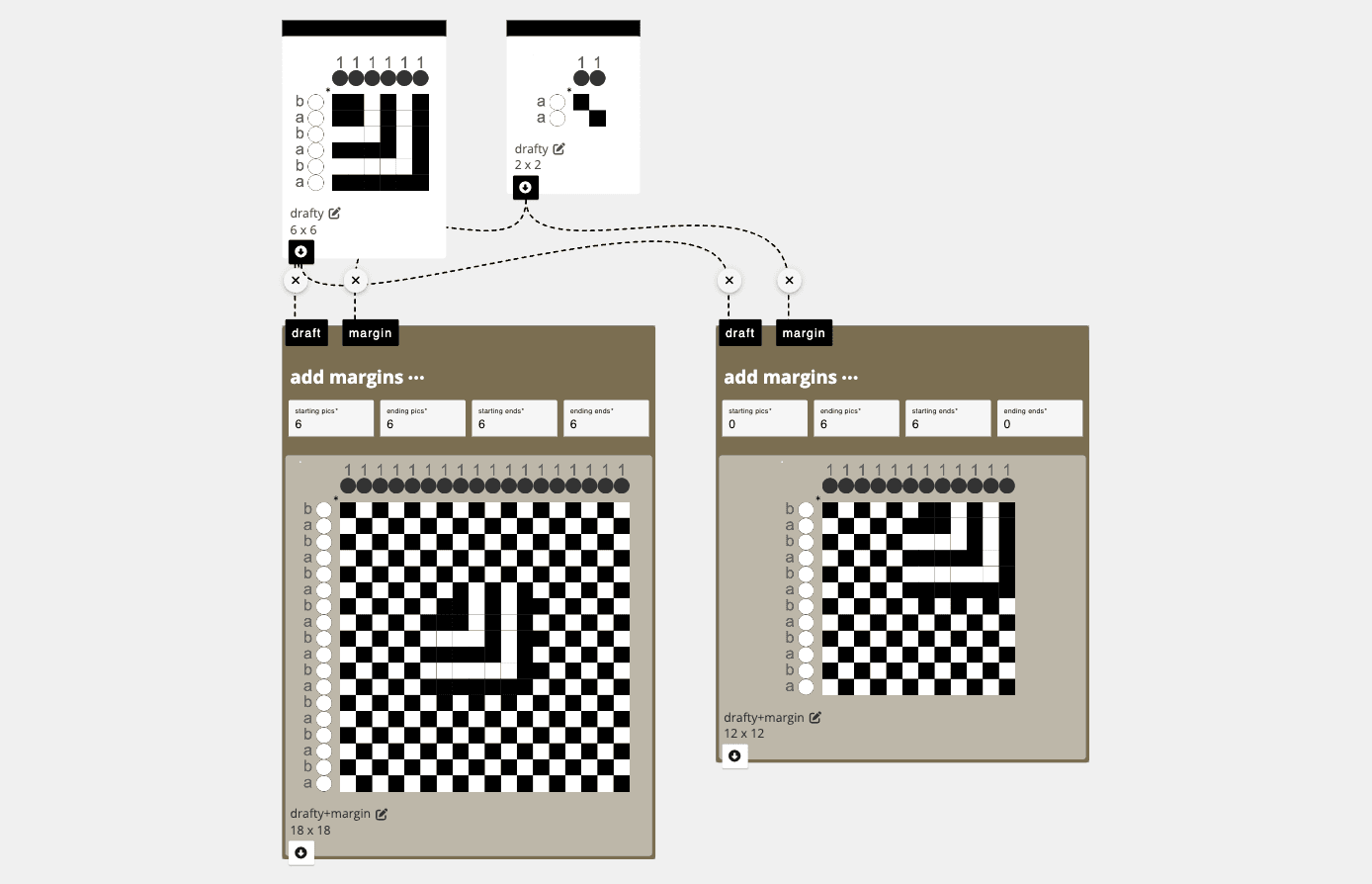

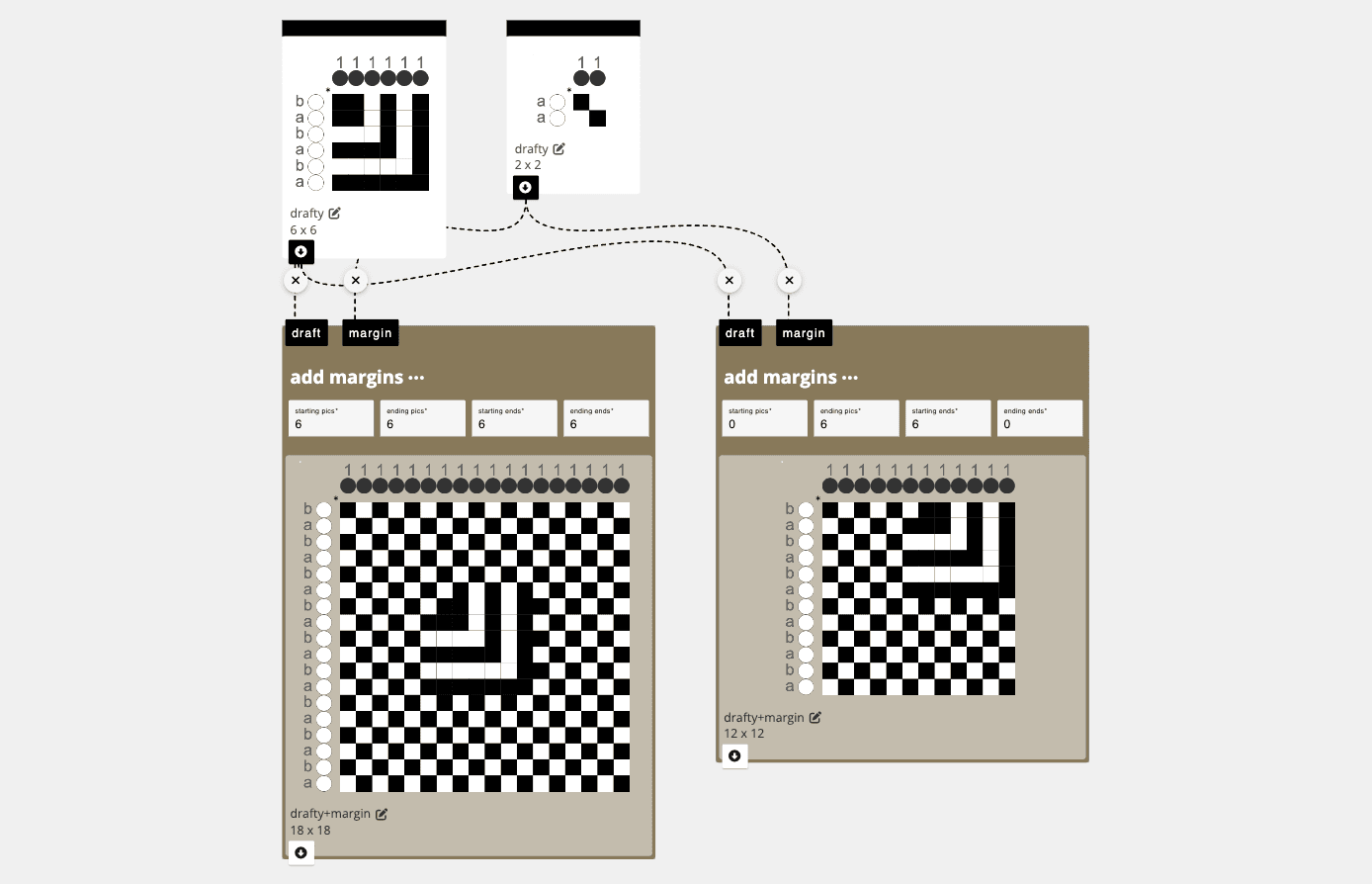

Encases one structure within another by adding the second structure to the top, left, bottom and/or right of the draft.

Parameters​

  • starting pics: the number of ends to add to the start of the draft (which differs depending on your origin)
  • starting ends: the number of pics to add to the start of the draft (which differs depending on your origin)
  • ending pics: the number of ends to add to the end of the draft (which differs depending on your origin)
  • ending ends: the number of pics to add to the end of the draft (which differs depending on your origin)

Inlets​

  • draft: the draft you'd like to add a margin to
  • margin: When the second inlet is unfilled, it adds a margin of unset threads to the top, right, bottom, and/or left. If the second inlet has a draft, the margin is filled with the pattern of the draft specified

Application​

Adds borders of a given structure to rectangular blocks, perhaps to maintain consistent packing as one samples various structures across the width of the cloth.

Developer​

adacad id: margin

Developer​

src/operations/margin/margin.ts
