bitfield

  • 🔥 advanced
  • 🗂️ structure
  • ✍️ Alex McLean

Creates a structure based on a bitfield function, a mathematical function that uses x/y values to determine which heddles are lifted and lowered.

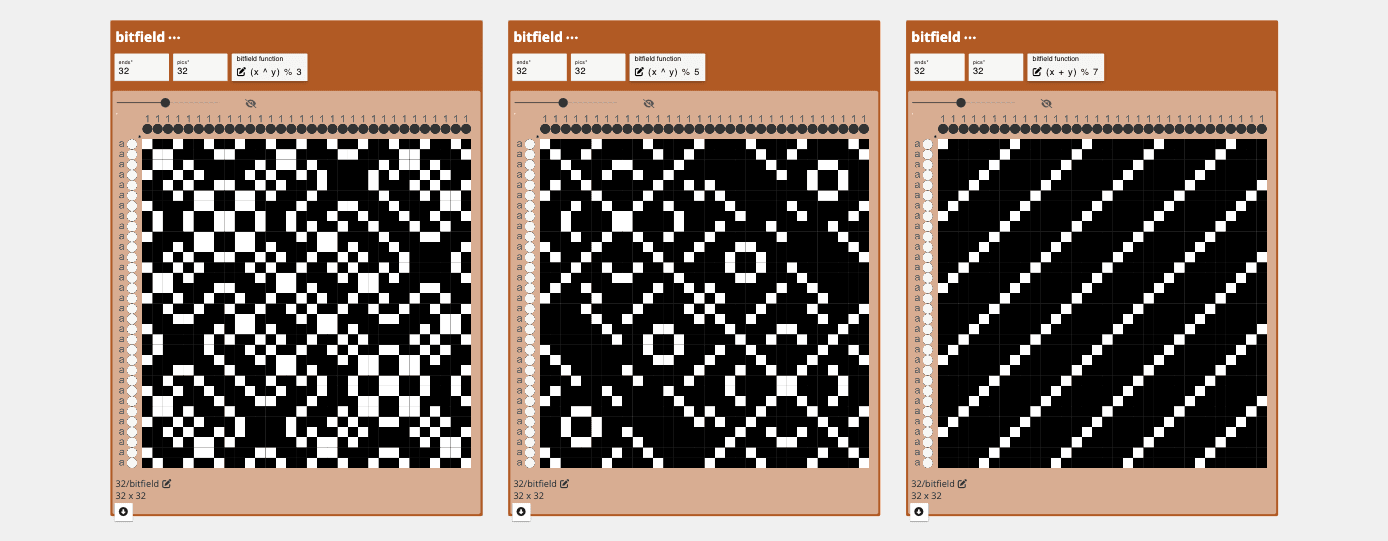

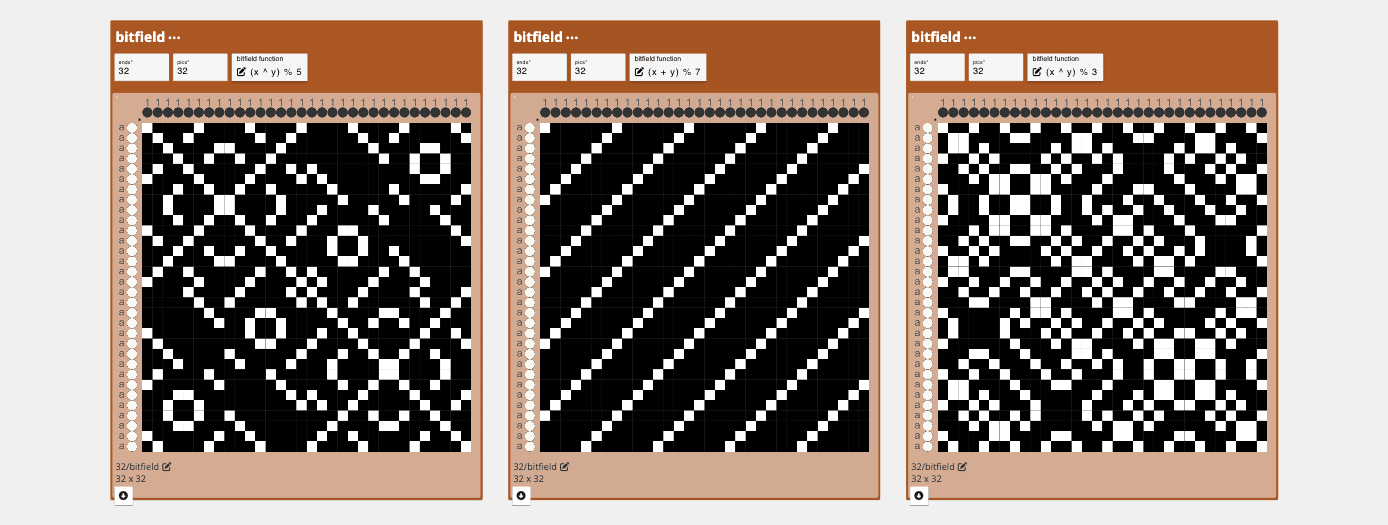

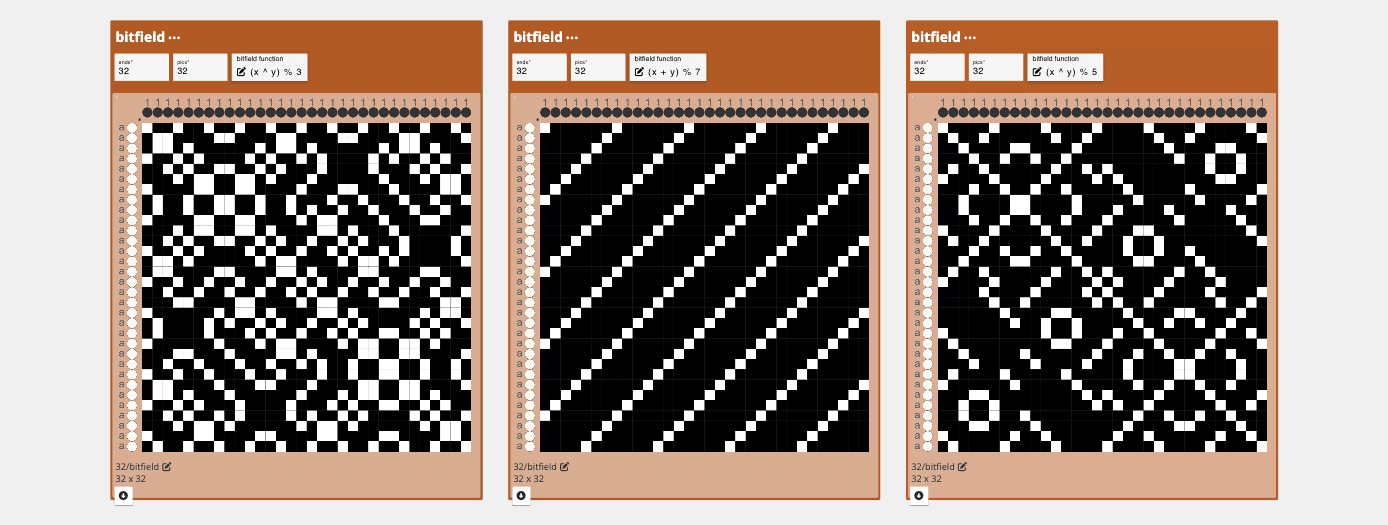

Example banner

Parameters​

  • ends: the desired number of ends for the structure produced
  • pics: the desired number of pics for the structure produced
  • bitfield function: a functions that will determine which heddles in the draft are (white/false) or raised(black/true). Each bitfield function takes x and y as input, where x represents the warp number, or end, and y represents the weft number or pick. The x, y coordinate of the origin is 0, 0. You can use a combination of bitwise math and modulo statements to create various expressions and, if the expression returns "true or 1", the x,y pixel is marked with a heddle lowered (white) and if false or 0, heddle raised (black).

Understanding Bitfield Functions​

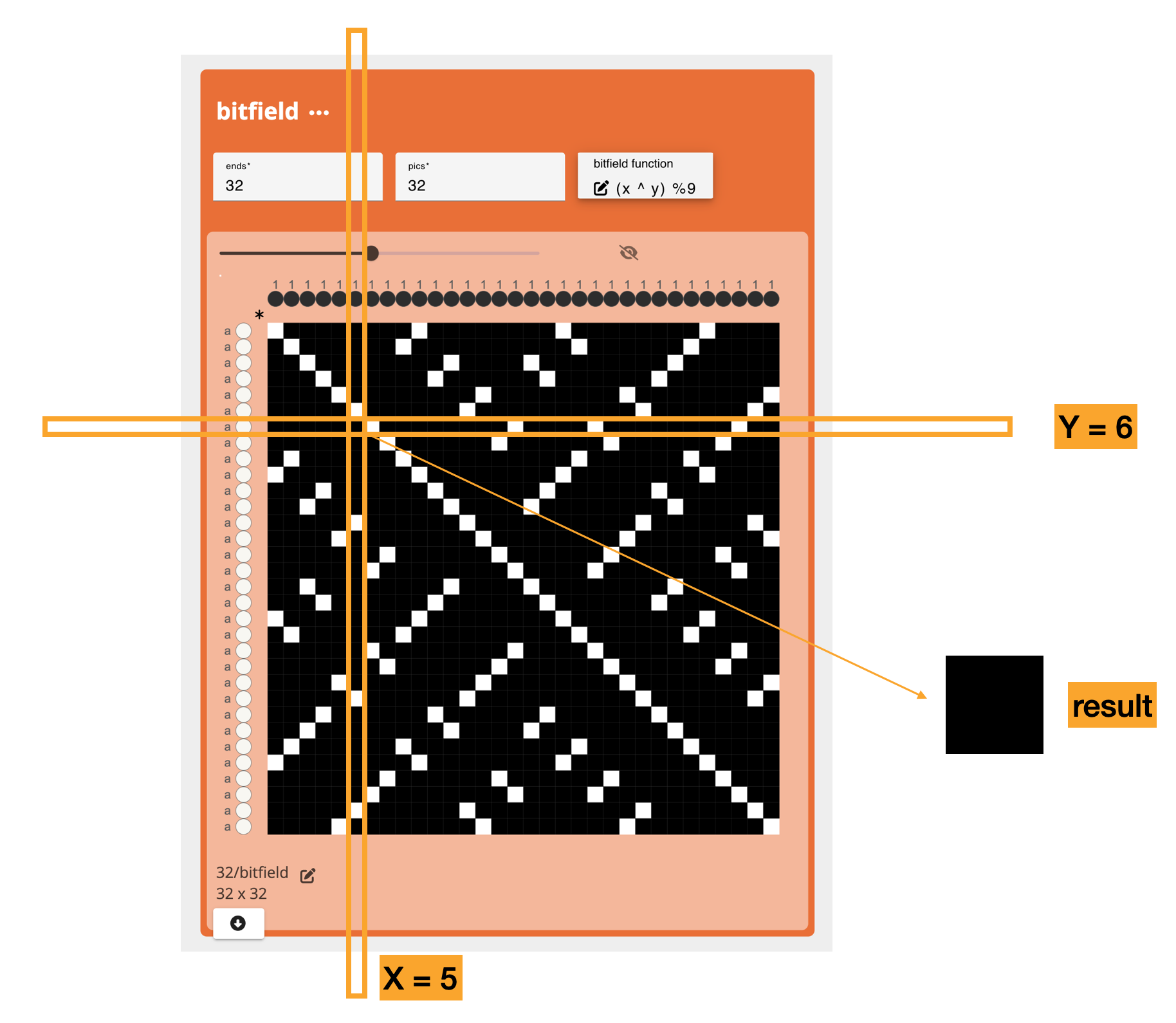

One key to the working of these functions is that they can transition between evaluation as bits and evaluation as numbers, for instance, let's figure out the value of pick 5 and end 6 in the statement (x ^ y) % 9:

5, in binary, can be represented as 101. 6, in binary, can be represented as 110.

5 ^ 6 = 101 ^ 110, where ^ represents a bitwise XOR operation which returns 1 if the two values it is comparing are different. Specifically we compare the first bits 1 ^ 1, to get 0, the second bits would be 0 ^ 1, which is 1 and the thrid is 1 and 0, which is 1

So, 5 ^ 6 = 101 ^ 110 = 011, which is the same as 3 5 ^ 6 = 3

We then compute 3 % 9 using standard math, which is 3.

since 3 !== 0, the result is "false" and heddle is raised/black.

file

Bitfield Operators​

  • x ^ y XOR: returns true if x and y have different values
  • x & y AND: returns true is both x and y are true
  • x | y OR: returns true if either x or y is true
  • ~x NOT: returns the opposite, if x is true, returns false.
  • x == y EQUALS: returns true if x and y share the same value
  • x + y Addition: Sums the values of x and y
  • x - y Subtraction: Subtracts the value of y from x
  • x / y Division: divides the value of y by x
  • x * y Multiplication: multiplies x and y
  • x % y Modulo: returns the remainder of x divided by y, for example 3 % 2 = 1

Here are a few examples:

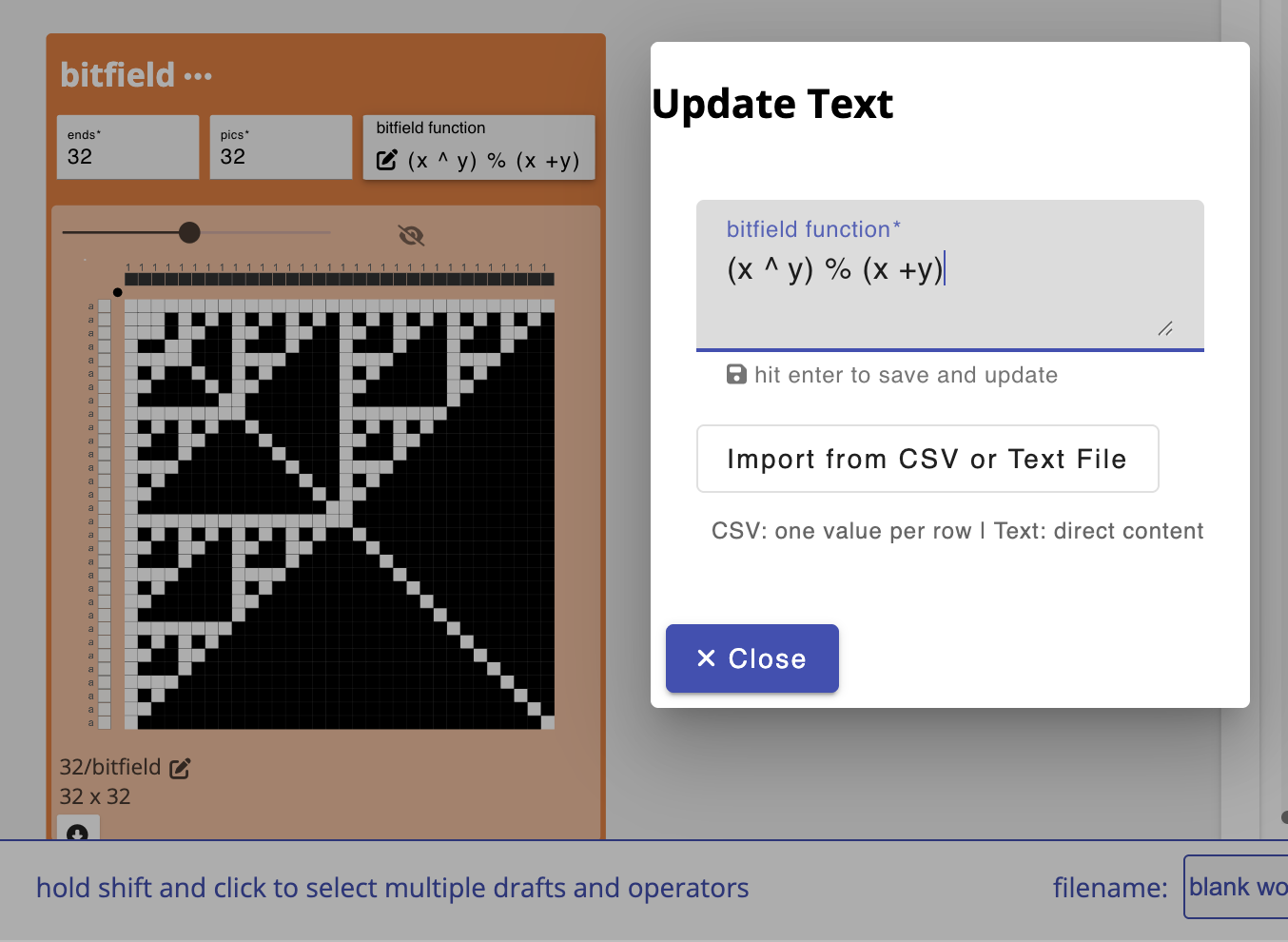

(x ^ y) % (x + y)

file

(2x * y) % (x ^ y)

file

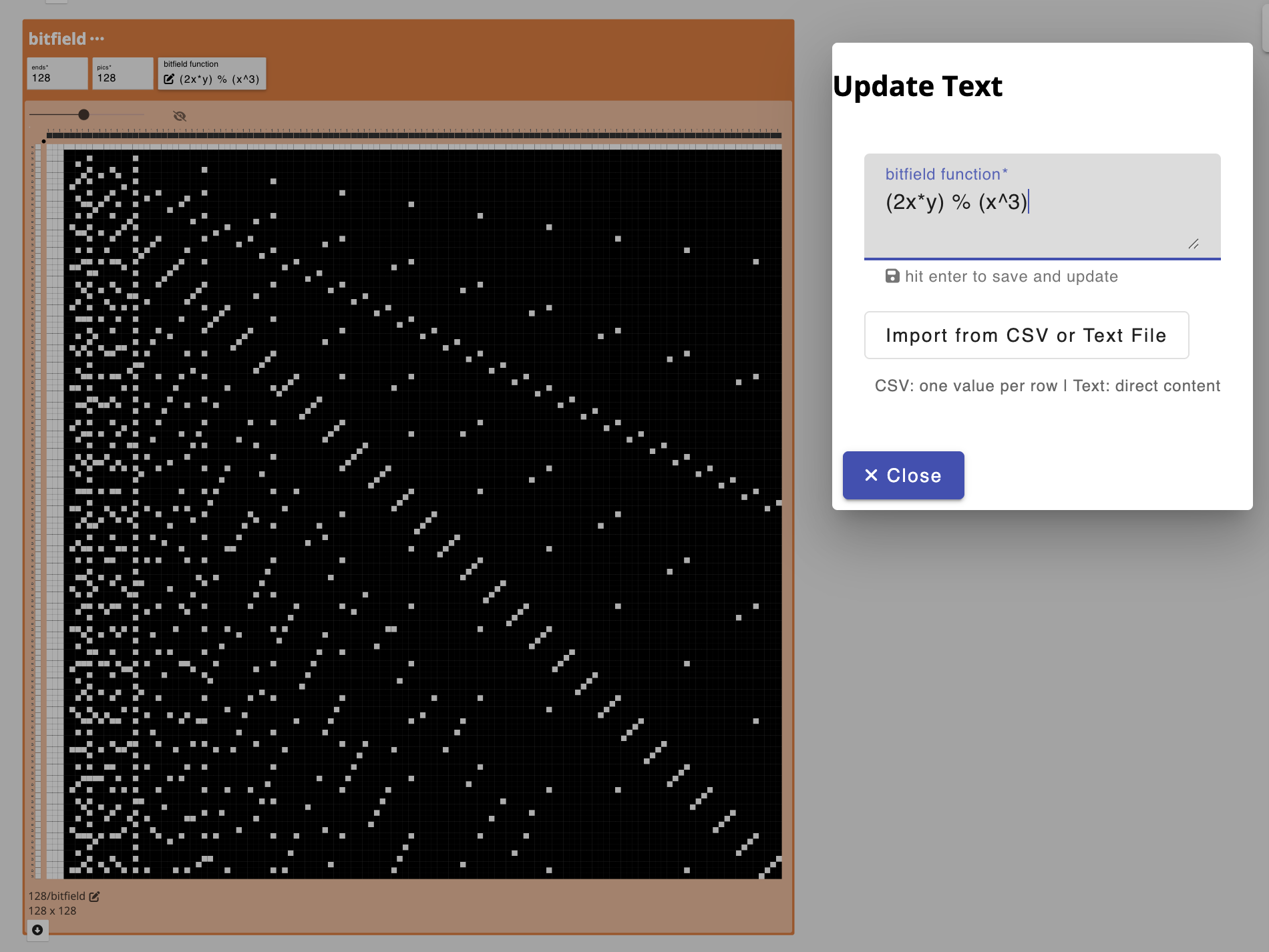

(2x * y) % (x ^ 3)

file

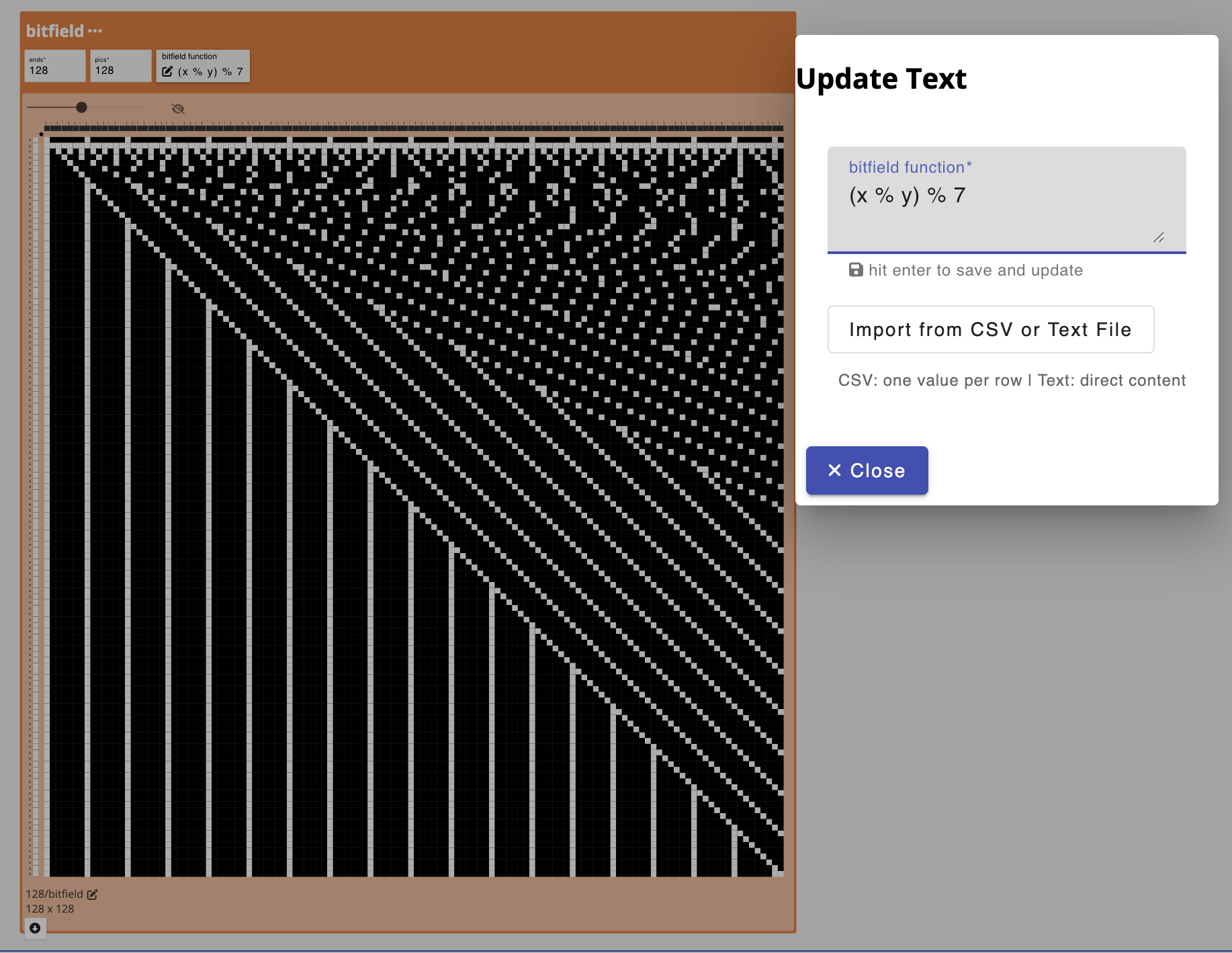

(x % y) % 7

file

Application​

A fun way to think about defining structures mathematically and designing some unexpected patterns.

Additional Info​

Developer​

adacad id: bitfield

packages/adacad-drafting-lib/src/operations/bitfield/bitfield.ts
