tabby

Also known as plain weave. Plain weave is one of the most basic weave structures in which each weft thread passes over one warp end and under one warp end; the next weft pick follows the pattern on the alternate warp threads (over/under/over/under). Tabby variations include basket weave, rib weave, and rep weave. These derivatives can be generated by modifying the parameters

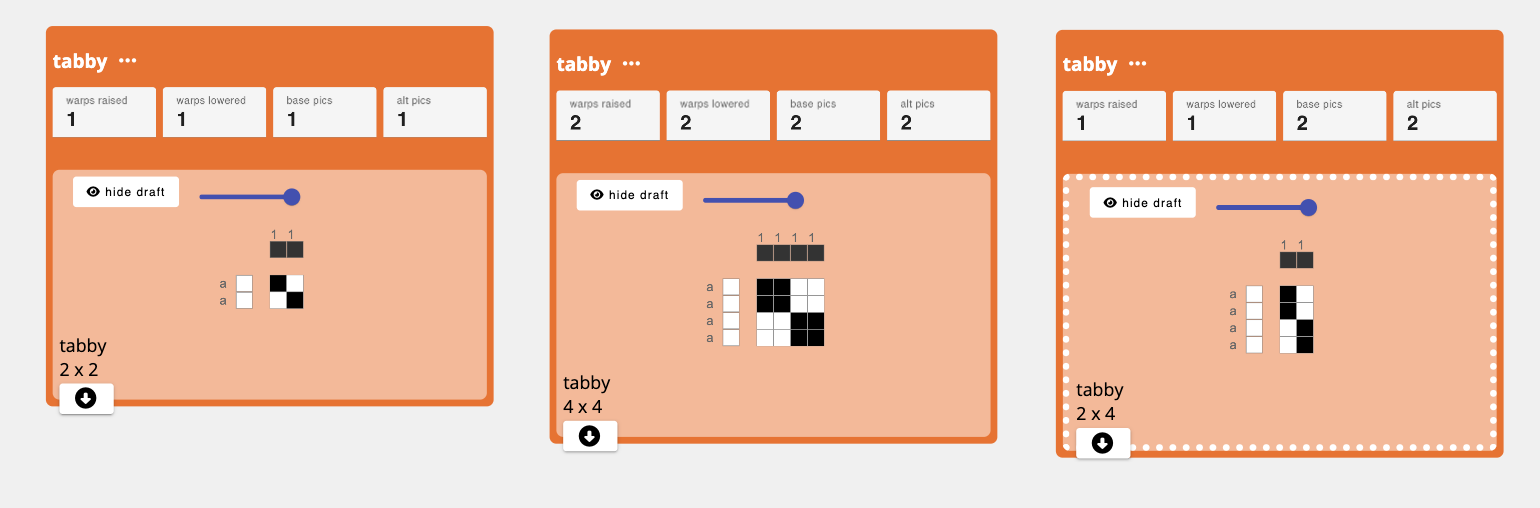

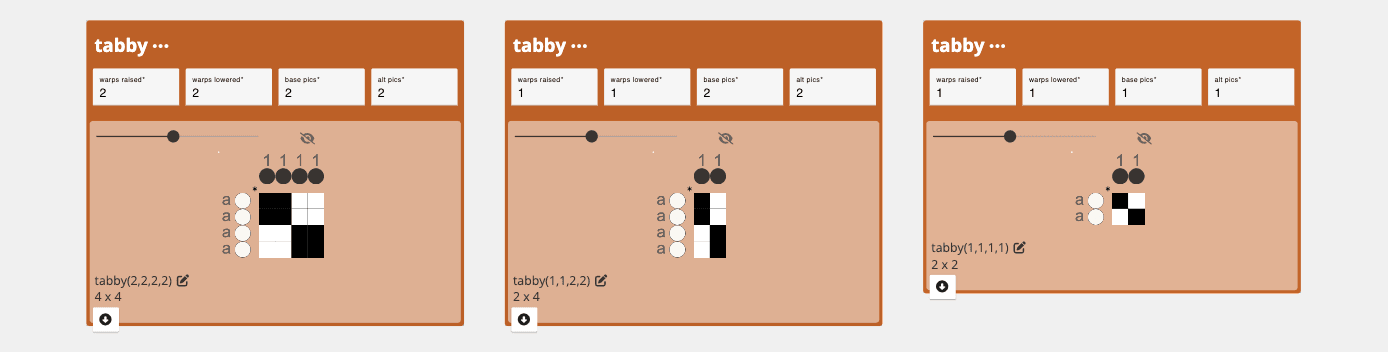

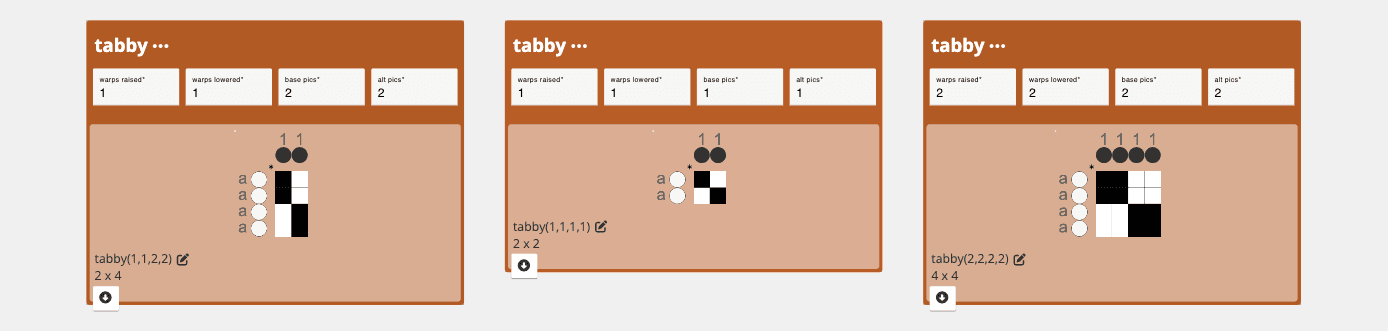

Parameters​

  • warps raised: sets the number of consecutive warps raised on the first/base pic.
  • warps lowered: sets the number of consecutive warps lowered on the first/base pic.
  • base pics: the number or repeats to make of the base pic.
  • alt pics: the number of repeats to make of the opposite, or inverse, of the base pattern.

Application​

Generates a tabby or tabby derivative structure that can be modified as needed as ones design evolves.

Developer​

src/operations/tabby/tabby.ts
