extract loom data

  • 🔥 advanced
  • 🗂️ style

creates a new drawdown based on the threading, treadlings, tieup or lift plan of an input draft

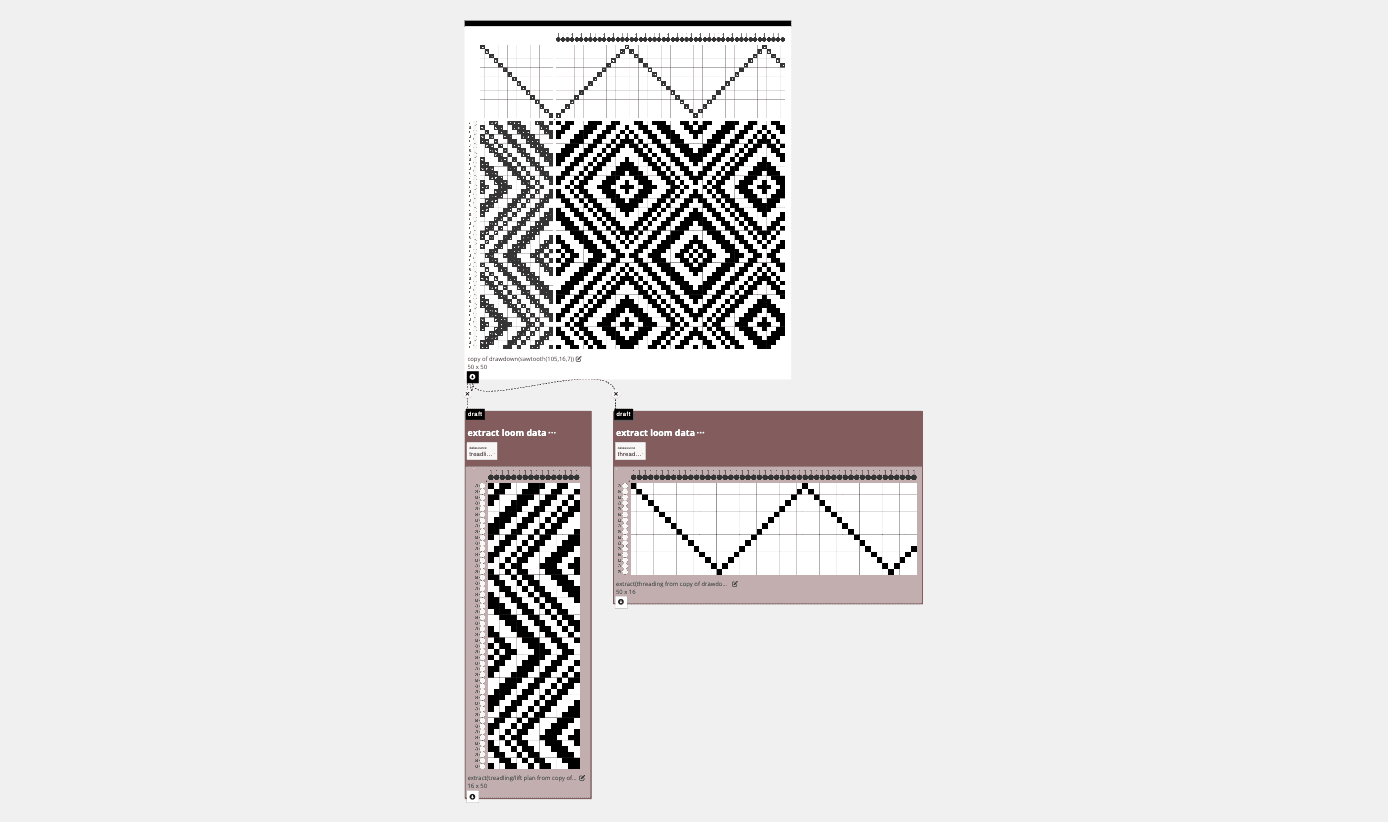

Example banner

Parameters​

  • datasource: the loom data to turn into a drawdown. Select threading to make a draft where each row is a frame and each column is a warp end, treadling/lift plan to make a draft where each row is a pick and each column is a treadle, or tieup to make a draft where each row is a frame and each column is a treadle.
info

On a direct tie loom there is no tieup to extract, so the tieup option returns a draft with the interlacements running along the diagonal.

Inlets​

  • draft: the draft from which to extract data. The draft must carry loom data, so a jacquard draft produces no output.

Application​

To work with the threading, treadling, lift plan, or tieup of a draft as a drawdown in its own right, so that it can be edited or fed into other operations and then recombined with make drawdown from threading, tieup, and treadling.

Developer​

adacad id: extract

packages/adacad-drafting-lib/src/operations/extract/extract.ts
