convert loom types

  • 🔥 advanced
  • 🗂️ style

converts between direct and frame type looms, and vice versa

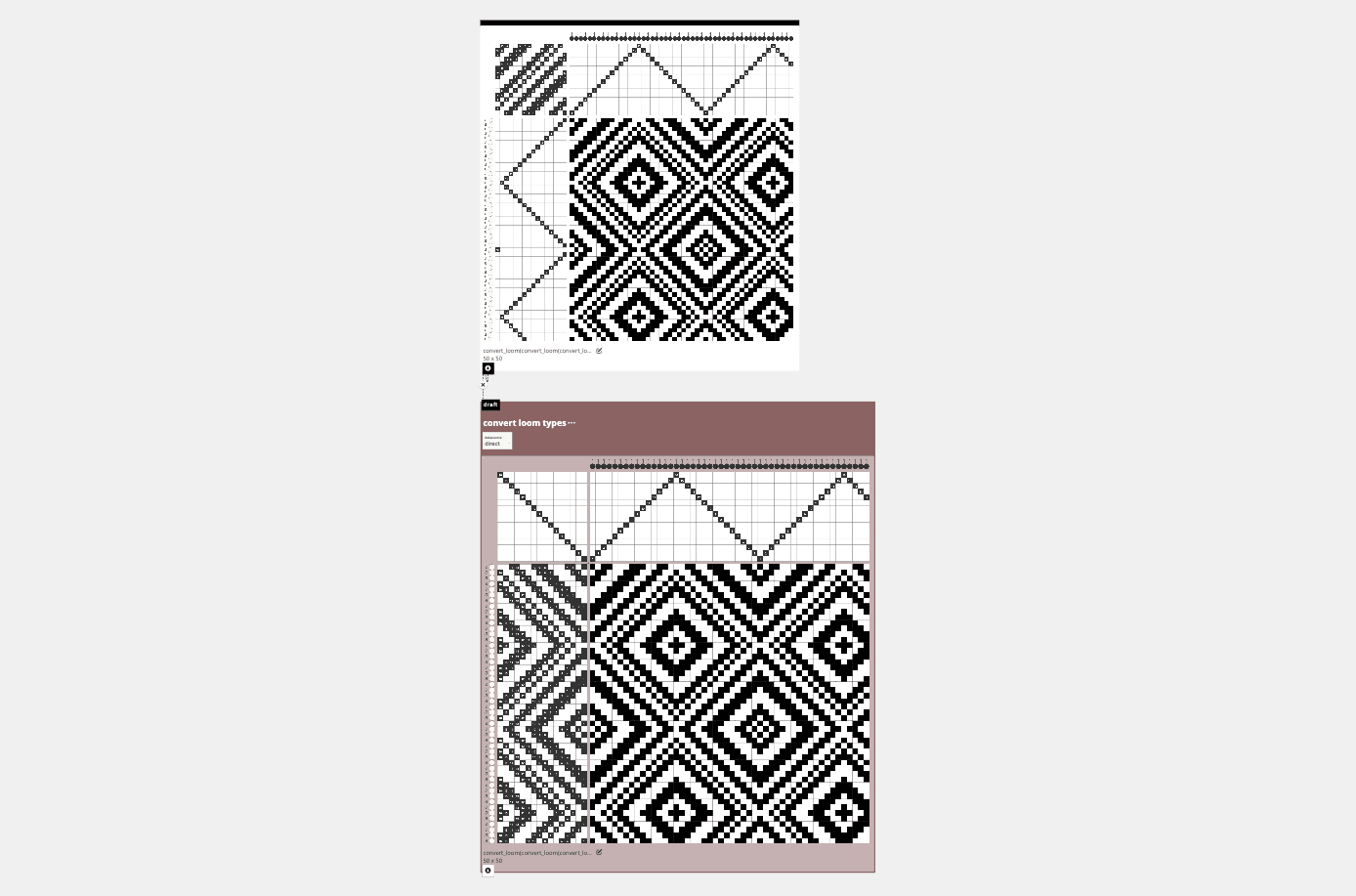

Example banner

Parameters​

  • convert to: the loom type to produce. Select frame to turn a lift plan into a tieup and treadling for a floor loom, or direct to flatten a tieup and treadling into a lift plan for a direct tie loom.
info

The drawdown is never changed by this operation, only the threading, tieup, treadling, and lift plan used to weave it. A draft that is already the requested loom type passes through untouched, and a jacquard draft produces no output because it has no frames or treadles to convert.

Inlets​

  • draft: the draft and loom to convert.

Application​

To move a draft between the floor loom and direct tie loom drafting conventions, for instance when a draft was written for one loom but needs to be woven on another.

Developer​

adacad id: convert_loom

packages/adacad-drafting-lib/src/operations/convert_loom/convert_loom.ts
