waffle

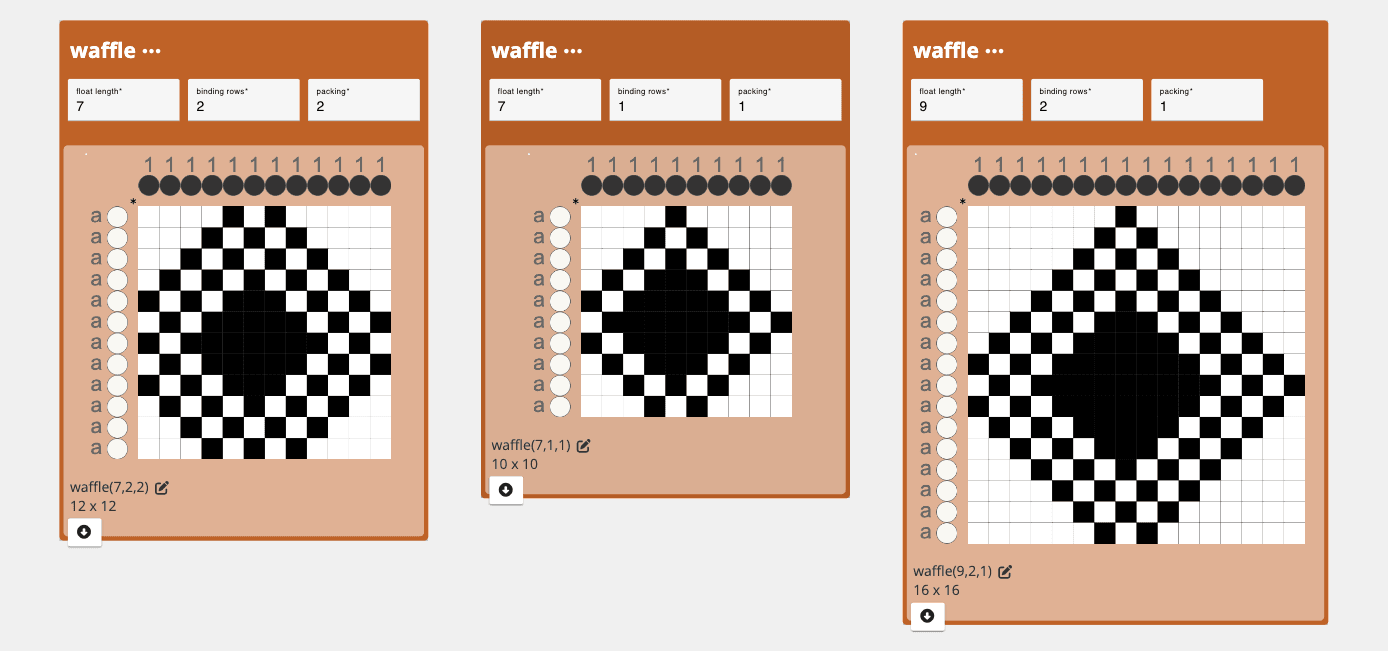

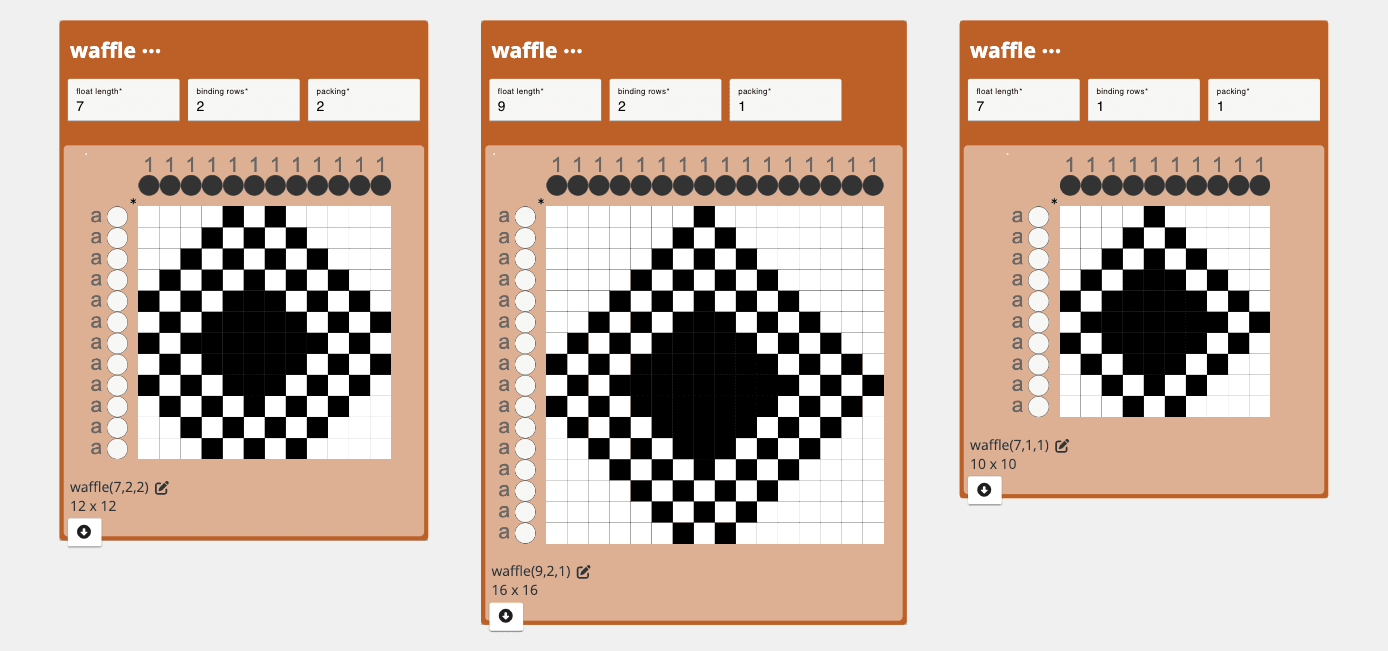

Waffle weave is a twill-based structure in which warp and weft floats of increasing and then decreasing lengths are bound by a border of tabby interlacements to create a grid of cells. There is typically an equal number of pics and ends in a single pattern unit. This operation generates waffle structures based on specifying the longest float and number of binding rows to surround each waffle.

Parameters​

  • float length: the length of the longest float in the waffle structure. Must be an odd number (and if even, will round down to the closest odd number)
  • binding rows: this the number of tabby borders around the central diamond.
  • packing: crops the structure to control how tightly the floating regions in the design will be packed together when tiled.

Application​

Generates a waffle structure that can be modified as needed as ones design evolves.

Developer​

adacad id: waffle

Developer​

src/operations/waffle/waffle.ts
