make drawdown from threading, tieup, and treadling

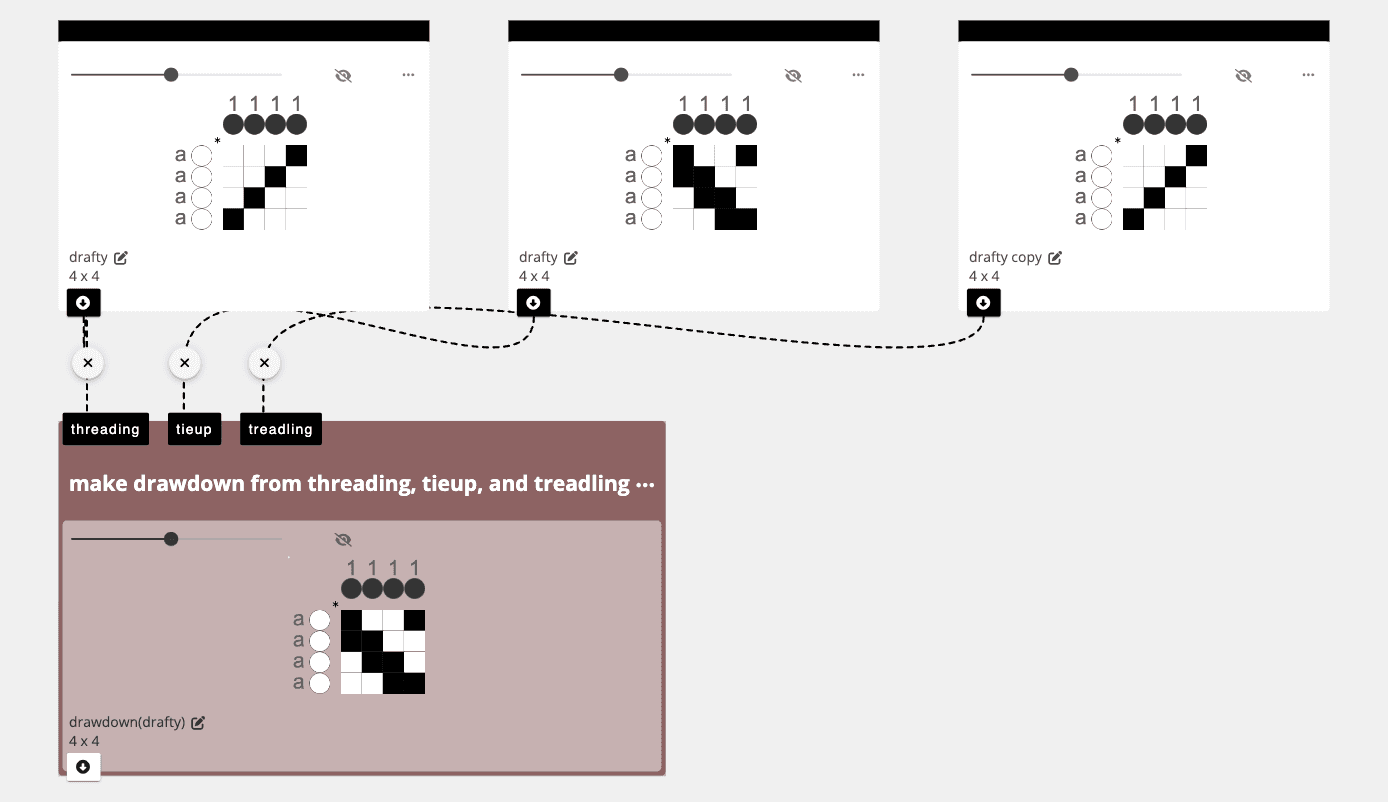

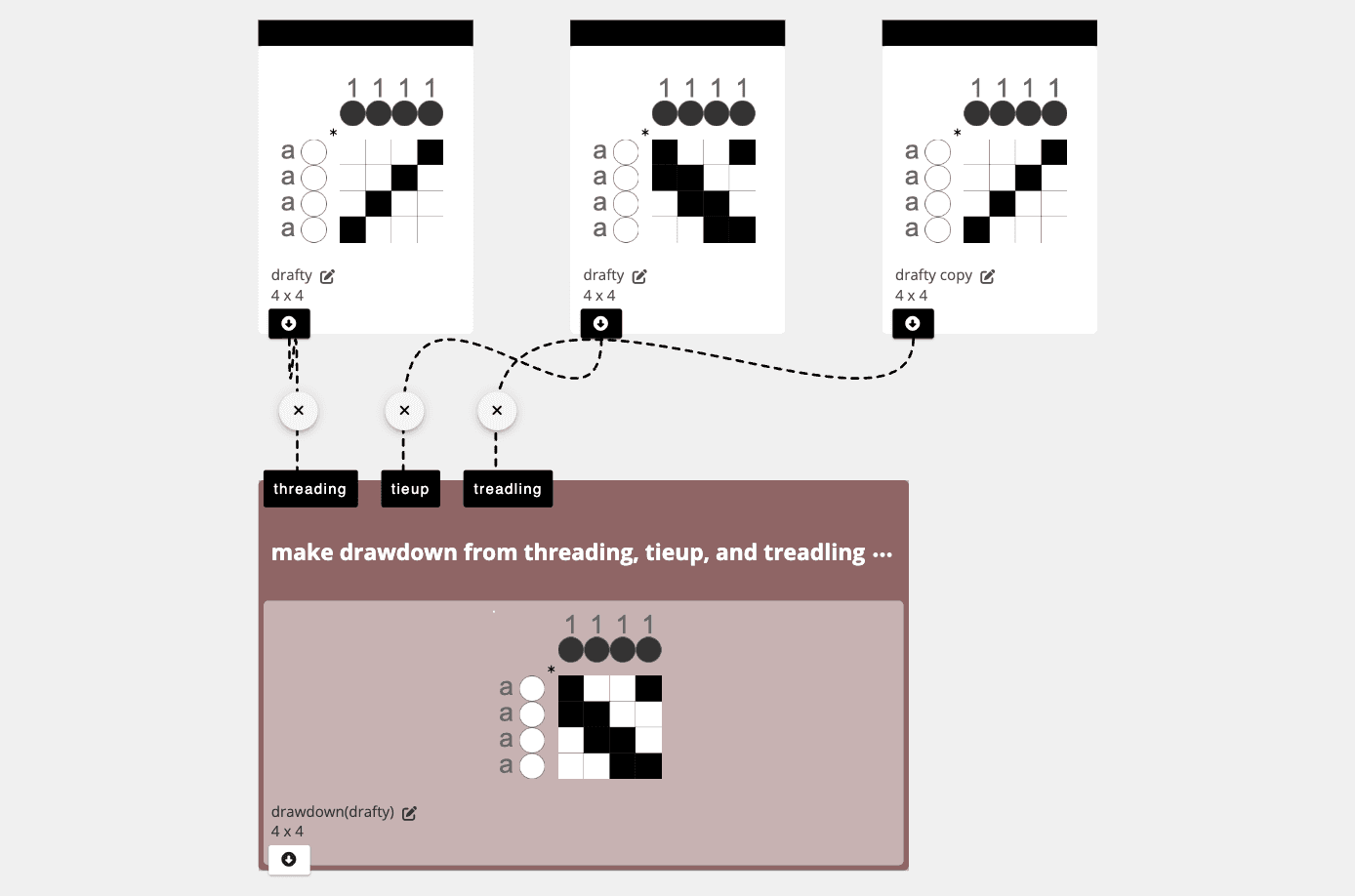

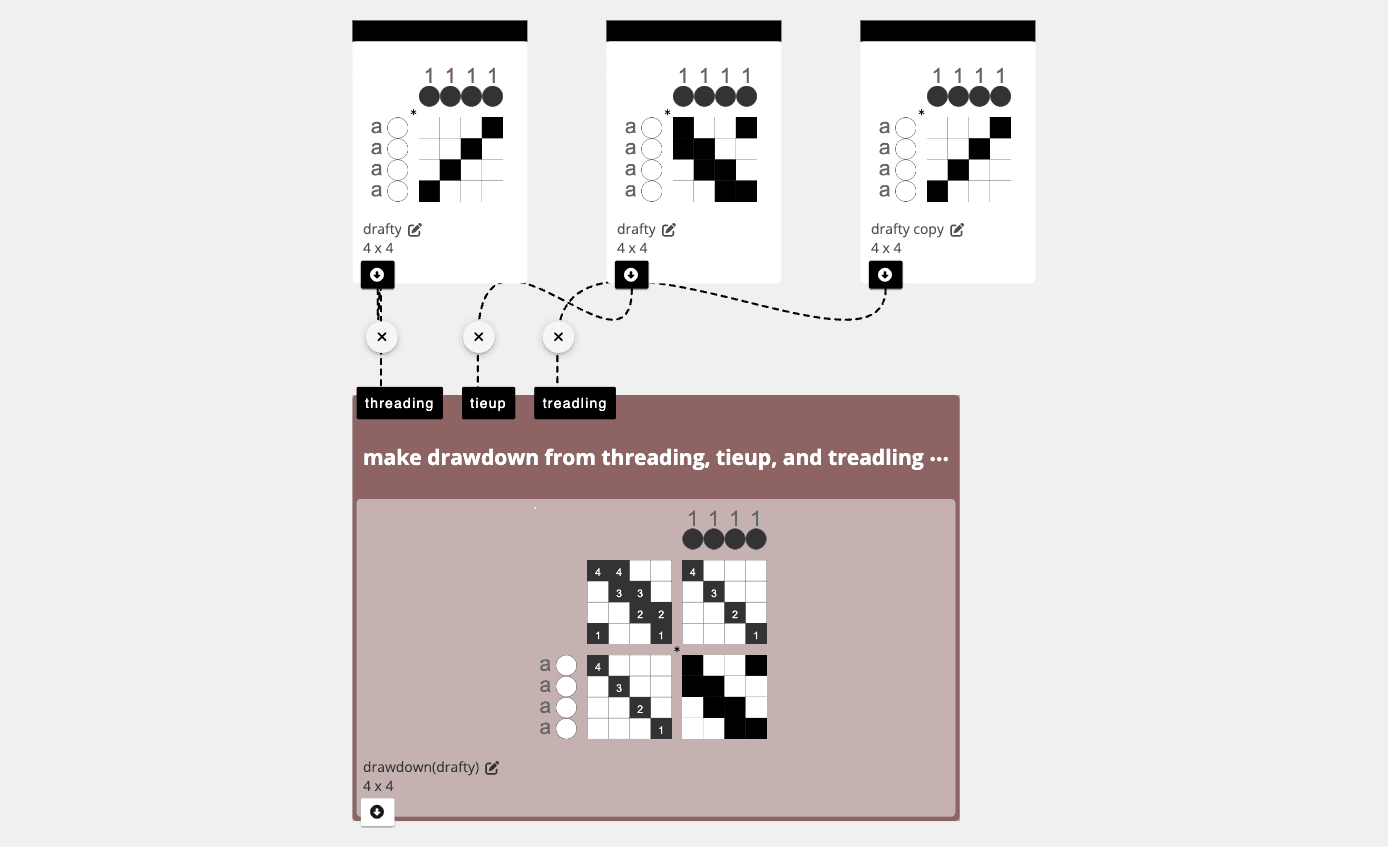

Create a drawdown from the input drafts (order 1. threading, 2. tieup, 3.treadling)

Parameters​

  • none

Inlets​

  • threading: the draft to use as the threading. If more than one black cell is found in any column, the algorithm will only look at the one closest to the origin.
  • tieup: the draft to use as the tieup
  • treadling: the draft to use as the threading. If more than one black cell is found in any row, the algorithm will only look at the one closest to the origin.

Application​

To create drawdown from from a floor loom plan

Developer​

adacad id: drawdown

Developer​

src/operations/drawdown/drawdown.ts
