make symmetric

  • 💡 basic
  • 🗂️ transformation

Rotates and 'stamps' the input draft around a corner, creating rotational symmetry around the selected point according to the parameters described below.

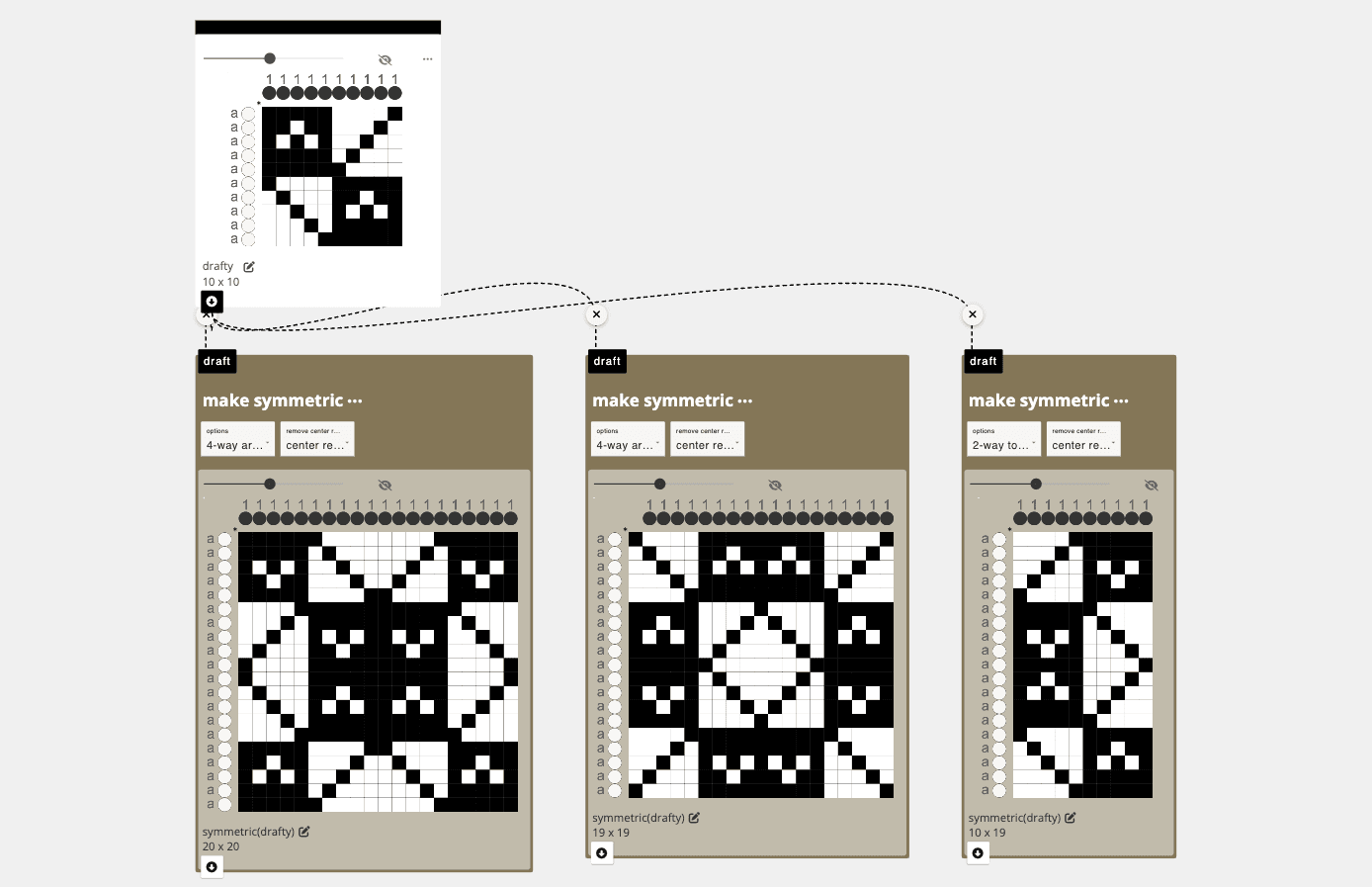

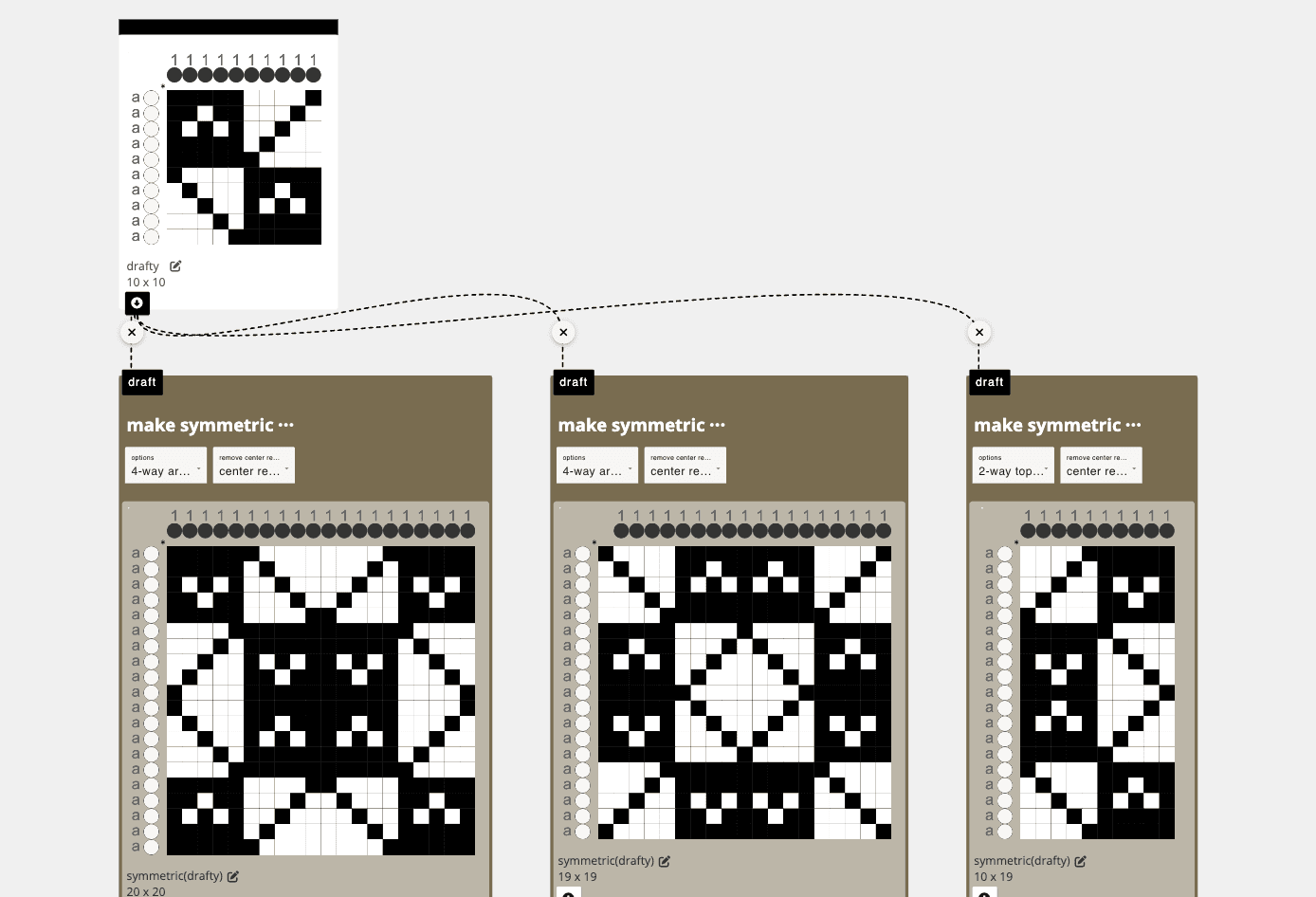

Example banner

Parameters​

  • options: a list of options for 4-way and 2-way symmetry. Each option specifies the corner that will become the center of the design when rotated
  • center repeat removed?: in some cases where designs are pointed, the rotational duplicates the final point of the design. You can remove the center end or pick to preserve pointed structures.

Application​

to create structures with rotational symmetry

Developer​

adacad id: makesymmetric

packages/adacad-drafting-lib/src/operations/makesymmetric/makesymmetric.ts
